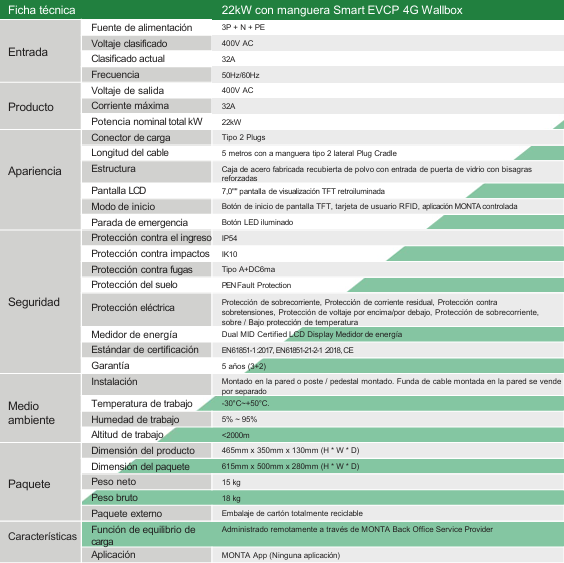

OGJZTS-BG22 Cargador TESIDA 22kW Dual con manguera, Trifásico, con Load Management, acceso con targeta RFID o App Monta, conexión 4G/WiFi, con sistema CPMS/programa de gestión integrado y abierto.

Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 32A
Frequency 50Hz/60Hz

Output Voltage 400V AC
Maximum Current 32A
Rated Power 22kW

Charge Connector Type 2 cable
Cable Length 5 metros con a manguera tipo 2 lateral Plug Cradle
Enclosure Steel
LCD Display 7.0” screen, touchscreen programmable
Start Mode Plug &Play/RFID card/APP control
Emergency Stop Yes

Ingress Protection IP54
Impact Protection IK10
Leakage Protection TypeA+DC8ma
Ground Protection PEN Fault
Electrical Protection Over current protection, Residual current protection, Surge protection, Over/Under voltage
protection, Over/Under frequency protection, Over/ Under temperature protection
Certification CE
Certification Standard EN 61851-1: 2017, EN 61851-21-2: 2018
Warranty 3 years +2 years

Installation Wall-mount/Pole-mount
Work Temperature -30°C~+50°C
Work Humidity 5%~95%
Work Altitude <2000m

Product Dimension 465*350*130mm (H*W*D)
Package Dimension 600*500*280mm (L*W*H)
Net Weight 11kg
Gross Weight 14kg
External Package Carton

Load Management Available
Application Monta App
Untethered Wall Box Dual
22kW 32A
